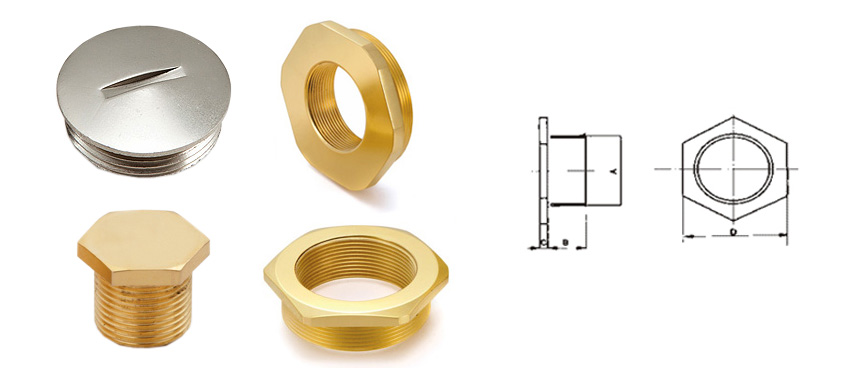

Stop Plug
Stop Plug
General Specification
Our Stop Plugs are intended for outdoor use in the appropriate hazardous areas providing environmental protection IP67 with entry thread of Metric, BSP (BS Pipe Threads), NPT (Taper Threads) & ET (BS Conduit Threads). They are suitable for normal industrial envoironment of temperatures, humidity and vibration. Our Stop Plugs are available to suit explosive atmosphere as well as general purpose and industrial. Our Stop Plugs provides a means of blanking unused cable entries on a temporary or permanent basis. Our Stop Plugs consists of Stop Plug & Sealing Ring.
DECLARATION
Design Standard |
EN 60079-0:2012 + A11:2013 EN 60079-1:2014 + EN 60079-31:2014 |
Certification |
EX II 2 GD Ex DB IIC GB / EX E IIC GB EX TB IIC DB IP67 |
Ingress Protection |
IP 67 |
Certificate |
TI1 7ATEX 826 X - EX Notified Body No.1354 |
OPTIONS
Meterials |
BRASS : BS 2874 CZ121 / IS 319 GR-1 STAINLESS STEEL : ASTM A314 GR-304/316 L Mild Steel |
Threads |
ISO Metric National Pipe Thread (NPT) British Standard Pipe (BSP) Imperial (ET) |
Plating |
Brass Finish / Nickel Finish / Chrome Finish |
Accessories |
Lock Nut, Earth Tag, IP Nylon Washer, Serrated Washer, PVC / LSF Shroud. |
