Earth Tags
Earth Tags
Technical Data
Application : Provides an earth bond attachment for a cable gland.
Material & Finish : Earth tags are manufactured in Brass (standard). Stainless Steel earth tags are available, but dimensions may differ slightly to those stated in the selection table.
Material & Finish : Earth tags are manufactured in Brass (standard). Stainless Steel earth tags are available, but dimensions may differ slightly to those stated in the selection table.

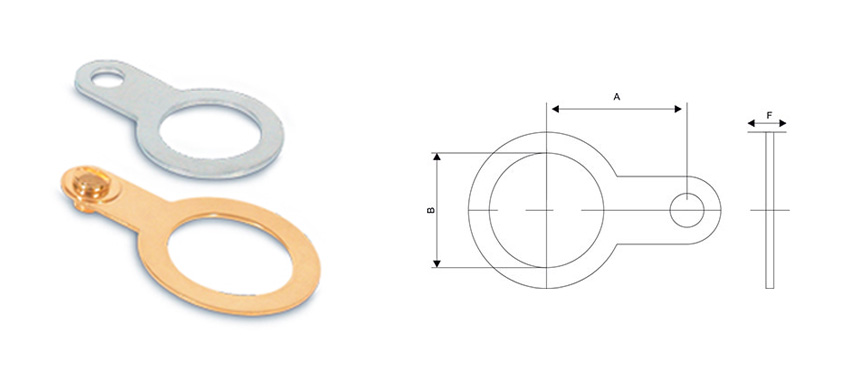

| CODE NO | SIZE | A' | B' | C' | D' | E' | F' |
RP-ET-M20 |
M20 |
29 |
20.5 |
13 |
6.50 |
27.00 |
1.5 |
RP-ET-M25 |
M25 |
37 |
25.5 |
13 |
6.50 |
33.00 |
1.5 |
RP-ET-M32 |
M32 |
44 |
32.5 |
16 |
6.50 |
39.00 |
1.5 |
RP-ET-M40 |
M40 |
52 |
40.5 |
16 |
6.50 |
44.00 |
1.5 |
RP-ET-M50 |
M50 |
64 |
50.50 |
16 |
6.50 |
51.00 |
1.5 |
RP-ET-M63 |
M63 |
80 |
63.50 |
23 |
6.50 |
65.00 |
1.5 |
RP-ET-M75 |
M75 |
96 |
75.5 |
24 |
6.50 |
73.00 |
1.5 |
RP-ET-M90 |
M90 |
114 |
90.5 |
37 |
6.50 |
86.00 |
1.5 |
