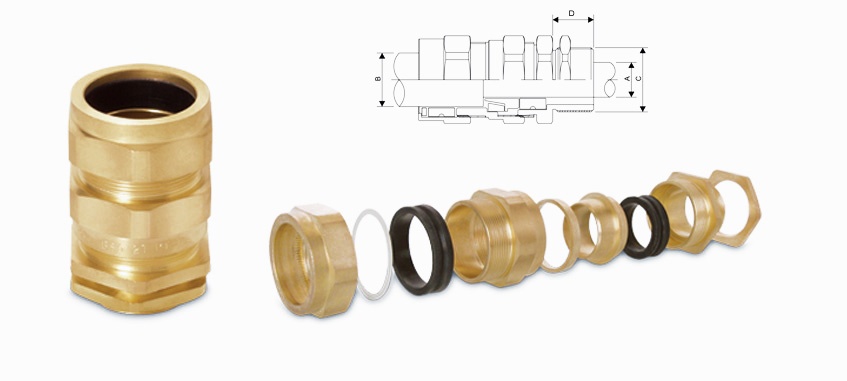

E1W Type Cable Gland
E1W Type Cable Gland
Technical Data
SIZE : 20 mm to 100 mm S & L
Standard : BS 6121
IP RATING : IP66 & 67
APPLICATION : For indoor or outdoor use with all typesof SWA Cable.
FUNCTION : E1W type glands provide a Seal on the inner sheath, a seal on the outer sheath and an armour specific armour clamp for armoured cable. The armour clamp provides an electrical bond between the armour cable and the gland.
Standard : BS 6121
IP RATING : IP66 & 67
APPLICATION : For indoor or outdoor use with all typesof SWA Cable.
FUNCTION : E1W type glands provide a Seal on the inner sheath, a seal on the outer sheath and an armour specific armour clamp for armoured cable. The armour clamp provides an electrical bond between the armour cable and the gland.
Material : Brass BS 2874 CZ121 Pb3
Optional Threads : METRIC,NPT,BSP & PG.
Operating Temp. : -20°C to +80°C
Finish : Natural Brass & Nickel Finish.
Accessories : Matching Accessories available like PVC Shroud, Lock Nuts and Earth Tags.
Optional Threads : METRIC,NPT,BSP & PG.
Operating Temp. : -20°C to +80°C
Finish : Natural Brass & Nickel Finish.
Accessories : Matching Accessories available like PVC Shroud, Lock Nuts and Earth Tags.
| CODE NO. | GLAND SIZE | THREAD SIZE 'C' | MINIMUM LENGTH OF THREAD 'D' |
CABLE RANGE 'A' | CABLE RANGE 'B' | |||
| METRIC | NPT | MIN | MAX | MIN | MAX | |||
RP-E1-20S |
E1W 20S |
M20 |
1/2" |
15 |
8.80 |
11.70 |
11.80 |
16.00 |
RP- E1-20L |
E1W 20L |
M20 |
1/2" |
15 |
11.40 |
14.00 |
14.00 |
20.80 |
RP-E1-25S |
E1W 25S |
M25 |
3/4" |
15 |
13.00 |
16.00 |
18.00 |
24.00 |
RP-E1-25L |
E1W 25L |
M25 |
3/4" |
15 |
17.30 |
20.00 |
20.30 |
27.40 |
RP-E1-32S |
E1W 32S |
M32 |
1" |
10 |
20.00 |
23.00 |
24.50 |
31.00 |
RP-E1-32L |
E1W 32L |
M32 |
1" |
15 |
24.20 |
26.30 |
26.50 |
33.50 |
RP-E1-40S |
E1W 40S |
M40 |
1 1/4" |
15 |
26.00 |
29.00 |
30.40 |
36.00 |
RP-E1-40L |
E1W 40L |
M40 |
1 1/4" |
15 |
29.50 |
32.10 |
33.20 |
40.00 |
RP-E1-50S |
E1W 50S |
M50 |
1 1/2" |
15 |
33.00 |
38.10 |
40.00 |
46.50 |
RP-E1-50L |
E1W 50L |
M50 |
2" |
15 |
38.00 |
44.00 |
44.00 |
52.60 |
RP-E1-63S |
E1W 63S |
M63 |
2" |
20 |
44.00 |
50.50 |
50.00 |
59.00 |
RP-E1-63L |
E1W 63L |
M63 |
2 1/2" |
20 |
50.00 |
56.00 |
56.00 |
66.00 |
RP-E1-75S |
E1W 75S |
M75 |
2 1/2" |
20 |
56.00 |
62.00 |
63.50 |
71.00 |
RP-E1-75L |
E1W 75L |
M75 |
3" |
20 |
62.00 |
68.50 |
69.00 |
78.00 |
RP-E1-90 |
E1W 90 |
M90 |
3" |
20 |
65.00 |
80.00 |
84.00 |
96.00 |
RP-E1-100 |
E1W 100 |
M100 |
3 1/2" |
20 |
82.00 |
90.00 |
84.00 |
102.00 |
