Brass Washers

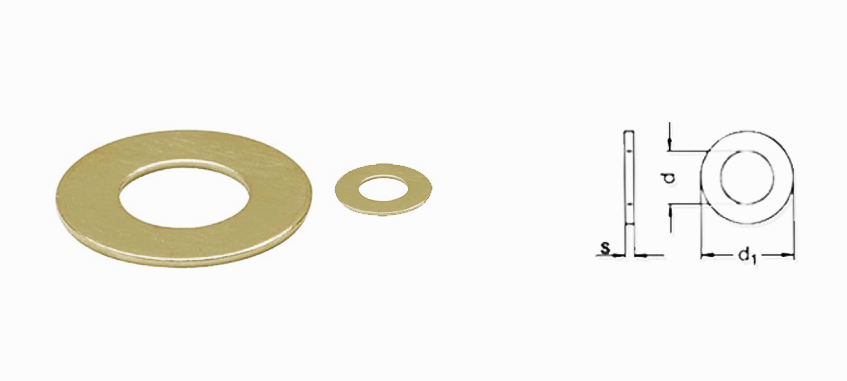

Brass Flat Washers Din 125

Technical Data

Material : Brass IS318- 319-320, CuZn40Pb2, CuZn39Pb3 as per customer’s Specifications.
Finish : Brass Natural, Nickel, Crome, Silver, Gold, Electro-Tinned as per customer’s requirements
Size : All dimensions are in MM. Any kind of Parts can be developed and supplied exactly as per customer specifications, design and requirements.

DIN 125 A ISO 7089

SCREW SIZE D (ID) MIN D (OD) MAX S - THICKNESS
M2
2.2
5
0.3
M2.5
2.7
6.5
0.5
M3
3.2
7
0.5
M4
4.3
9
0.8
M5
5.3
10
1
M6
6.4
12
1.6
M7
7.4
14
1.6
M8
8.4
16
1.6
M10
10.5
20
2
M12
13
24
2.5

DIN 125 B ISO 7090

SCREW SIZE D (ID) MIN D (OD) MAX S - THICKNESS
M14
15
28
2.5
M16
17
30
3
M18
19
34
3
M20
21
37
3
M22
23
39
3
M24
25
44
4
M27
28
50
4
M30
31
56
4
M33
34
60
5
M36
37
66
5

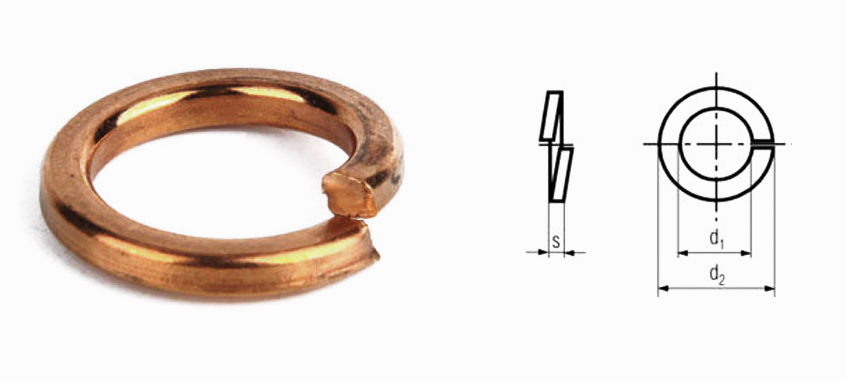

Brass Spring Washers Din 127

Technical Data

Material : Brass IS318- 319-320, CuZn40Pb2, CuZn39Pb3 as per customer’s Specifications.
Finish : Brass Natural, Nickel, Crome, Silver, Gold, Electro-Tinned as per customer’s requirements
Size : All dimensions are in MM. Any kind of Parts can be developed and supplied exactly as per customer specifications, design and requirements.

DIN 127

FOR SCREW D D B S
M2
2.1
4.4
0.9
0.5
M2.5
2.6
5.1
1
0.6
M3
3.1
6.2
1.3
0.8
M3.5
3.6
6.7
1.3
0.8
M4
4.1
7.6
1.5
0.9
M5
5.1
9.2
1.8
1.2
M6
6.1
11.8
2.5
1.6
M8
8.1
14.8
3
2
M10
10.2
18.1
3.5
2.2
M12
12.2
21.1
4
2.5
M14
14.2
24.1
4.5
3
M16
16.2
27.4
5
3.5
M18
18.2
29.4
5
3.5
M20
20.2
33.6
6
4
M22
22.5
35.9
6
4
M24
24.5
40
7
5
M27
27.5
43
7
5
M30
30.5
48.2
8
6
M33
33.5
55.2
10
6
M36
36.5
58.2
10
6
