Brass Hex Nuts
Brass Hex Nuts
Technical Data
Material : Brass IS318- 319-320, CuZn40Pb2, CuZn39Pb3 as per customer’s Specifications.
Finish : Brass Natural, Nickel, Crome, Silver, Gold, Electro-Tinned as per customer’s requirements
Size : All dimensions are in MM. Any kind of Parts can be developed and supplied exactly as per customer specifications, design and requirements.
Finish : Brass Natural, Nickel, Crome, Silver, Gold, Electro-Tinned as per customer’s requirements
Size : All dimensions are in MM. Any kind of Parts can be developed and supplied exactly as per customer specifications, design and requirements.

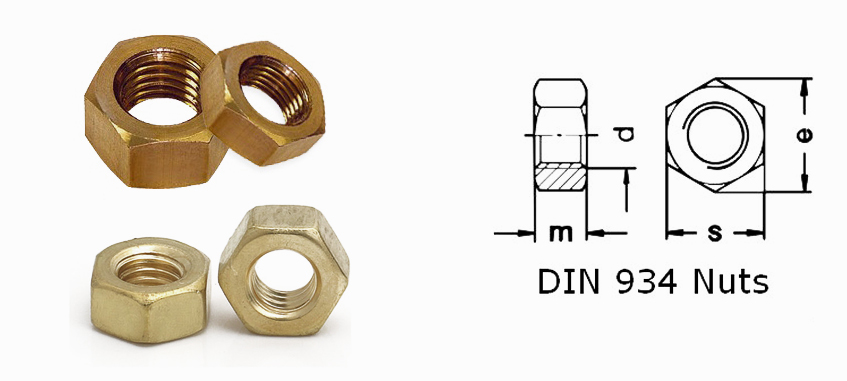

DIN 934
D |
S |
E |
M |
M2 |
4.00 |
4.32 |
1.60 |
M2.5 |
5.00 |
5.45 |
2.00 |
M2.6 |
5.00 |
5.45 |
2.00 |
M3 |
5.50 |
6.01 |
2.40 |
M3.5 |
6.00 |
6.58 |
2.80 |
M4 |
7.00 |
7.66 |
3.20 |
M5 |
8.00 |
8.79 |
4.00 |
M6 |
10.00 |
11.05 |
5.00 |
M7 |
11.00 |
12.12 |
5.50 |
M8 |
13.00 |
14.38 |
6.50 |
M10 |
17.00 |
18.90 |
8.00 |
M12 |
19.00 |
21.10 |
10.00 |
M14 |
22.00 |
24.49 |
11.00 |
M16 |
24.00 |
26.75 |
13.00 |
M18 |
27.00 |
29.56 |
15.00 |
M20 |
30.00 |
32.95 |
16.00 |
M22 |
32.00 |
35.03 |
18.00 |
M24 |
36.00 |
39.55 |
19.00 |
M27 |
41.00 |
45.20 |
22.00 |
M30 |
46.00 |
50.85 |
24.00 |
M33 |
50.00 |
55.37 |
26.00 |
M36 |
55.00 |
60.79 |
29.00 |
M39 |
60.00 |
66.44 |
31.00 |
M42 |
65.00 |
71.30 |
34.00 |
M45 |
70.00 |
76.95 |
36.00 |
M48 |
75.00 |
82.60 |
38.00 |
M52 |
80.00 |
88.25 |
42.00 |
M56 |
85.00 |
93.56 |
45.00 |
M60 |
90.00 |
99.21 |
48.00 |
M64 |
95.00 |
104.86 |
51.00 |
M68 |
100.00 |
110.51 |
54.00 |
M72 |
105.00 |
116.16 |
58.00 |
M76 |
110.00 |
121.81 |
61.00 |
M80 |
115.00 |
127.46 |
64.00 |
