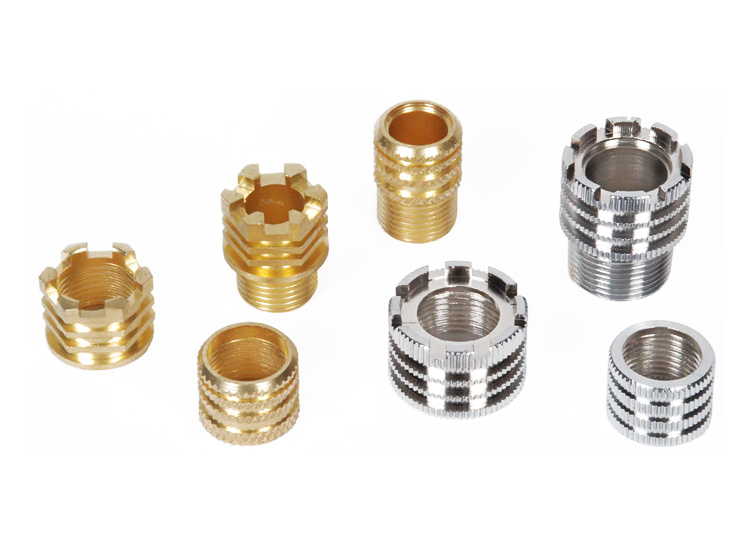

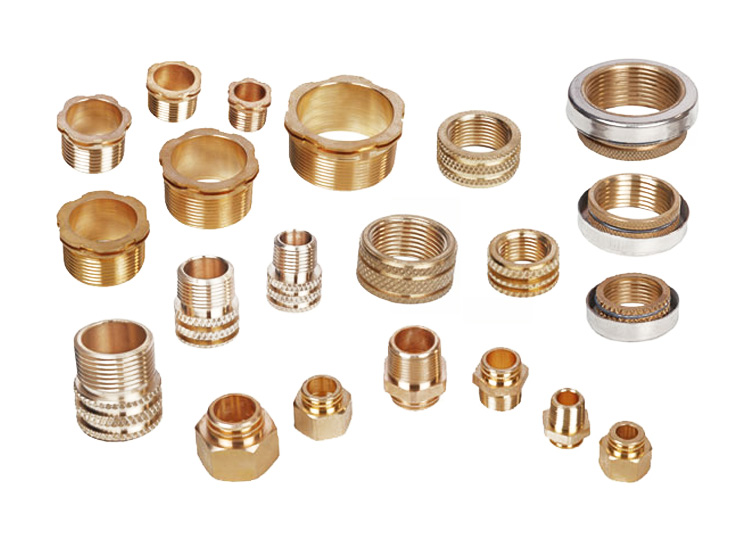

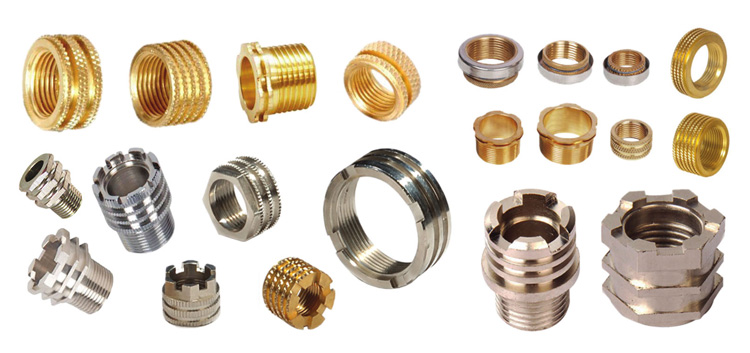

Brass PPR & CPVC Inserts

Description

We are manufacturing wide range of brass PPR/CPVC inserts and fittings in different size, material, thread and type and exporting it to various countries. Our comprehensive range of Brass PPR/CPVC Insert include male ppr insert, female ppr insert, male cpvc insert, female cpvc insert and more. These Brass PPR and CPVC inserts manufactured from high grade brass alloys and sophisticated techniques. All our brass PPR and CPVC inserts are adhering to DIN, JIS and other international norms and standards to fulfill the varied need of customer. We are capable to offer wide range of knurling including Diamond Knurling, Straight Knurling, Unidirectional Knurling or as per customer specification. Inner diameter (I/D) after threads with very close tolerance to prevent unnecessary flush to inter into the inserts. Our finest quality brass PPR/CPVC inserts are suitable for most of the applicable PPR Pipes, gas cylinders, electrical equipments and pipe line assembling.

Special Features of Brass Inserts :  » Threads as per International Go & Not Go Standards.
» Deep Groove for maximum Pull Out Resistance.
» Inner Diameter (I/D) after Threads with very close tolerance to prevent unnecessary flush to enter into the brass inserts.

Material : » CW614N (CuZn39Pb3), CW617N (CuZn40Pb2), CW602N(CuZn36Pb2As), CW511L (CuZn38As), Cuphin (CuZn21Si3P) or as per customer requirement.

Standard & Specification : » Developed specifically as per customer’s mould design & requirements.

Threads : » ISO Metric (MM Threads)
» BA Threads
» BSW Threads (Inches)
» UNC, UNF Threads
» Any threads as per specifications

Length / Size : 3/8”, 1/2”, 3/4”, 1”, 1.1/4”, 1.1/2”, 2”, 1.1/2”, 3”, 4”, 5” - As per Go Not Go Gauges & Deep Groove for maximum Pull Out Resistance

Finish And Coating : Natural, Nickle Plated, Tin Plated brass inserts or any coating as per customer specification.

Any Type of Brass PPR & CPVC Inserts can be developed and supplied exactly as per customer specifications.
