BW Type Cable Glands

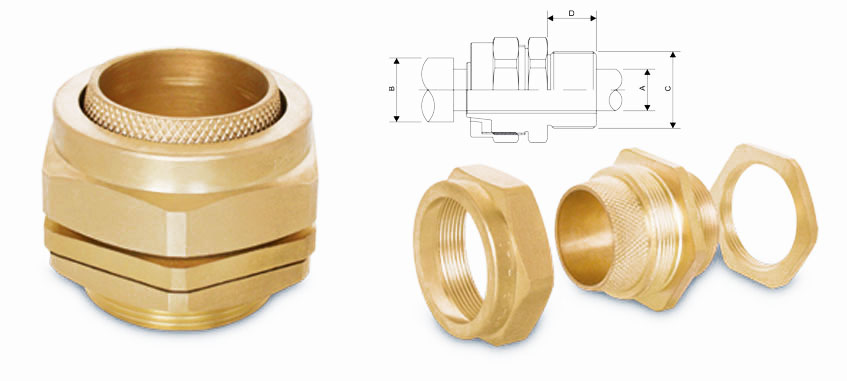

BW-2 Part Cable Gland
Technical Data
SIZE : 20 mm to 90 mm S & L
Standard : BS 6121
IP RATING : IP30
APPLICATION :Dry Indoor, for use with all types of SWA Cable.
FUNCTION : Provide mechanical Cable Retention & Electrical Wire continuity via Armoured Wire.
Standard : BS 6121
IP RATING : IP30
APPLICATION :Dry Indoor, for use with all types of SWA Cable.
FUNCTION : Provide mechanical Cable Retention & Electrical Wire continuity via Armoured Wire.
Material : Brass CW614N
Thread : Metric
Operating Temp. : -60°C to +200°C
Cable Type : Single Wire Armour (SWA) Cable
Features : Two Part Armour Lock
Accessories : PVC Shroud, Earth Tag, Galvanized Steel Lock Nut
Thread : Metric
Operating Temp. : -60°C to +200°C
Cable Type : Single Wire Armour (SWA) Cable
Features : Two Part Armour Lock
Accessories : PVC Shroud, Earth Tag, Galvanized Steel Lock Nut
| CODE NO. | GLAND SIZE | THREAD SIZE 'C' | MINIMUM LENGTH OF THREAD 'D' |
CABLE RANGE | ||
| METRIC | NPT | MAX 'A' | MAX 'B' | |||
RP-B2-20S |
BW 20S |
M20 | ½" | 10 | 11.50 | 15.50 |
RP-B2-20 |
BW 20 |
M20 | ½" | 10 | 14.00 | 20.50 |
RP-B2-25 |
BW 25 |
M25 | 3/4" | 10 | 20.00 | 27.20 |
RP-B2-32 |
BW 32 |
M32 | 1" | 10 | 26.30 | 33.50 |
RP-B2-40 |
BW 40 |
M40 | 1¼" | 15 | 32.00 | 40.00 |
RP-B2-50S |
BW 50S |
M50 | 1½" | 15 | 38.20 | 46.30 |
RP-B2-50 |
BW 50 |
M50 | 2" | 15 | 44.00 | 52.60 |
RP-B2-63S |
BW 63S |
M63 | 2" | 15 | 50.10 | 59.00 |
RP-B2-63 |
BW 63 |
M63 | 2½" | 15 | 56.00 | 65.30 |
RP-B2-75S |
BW 75S |
M75 | 2½" | 15 | 62.00 | 71.60 |
RP-B2-75 |
BW 75 |
M75 | 3" | 15 | 68.00 | 78.00 |
RP-B2-90 |
BW 90 |
M90 | 3" | 20 | 80.50 | 91.00 |

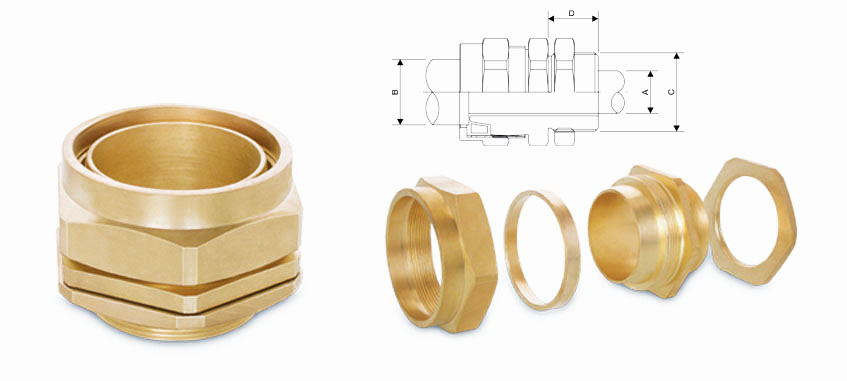

BW-4 Part Cable Gland
Technical Data
Size : 20 mm to 90 mm S & L
Standard : BS 6121
IP Rating : IP30
Application : Dry Indoor, for use with all types of SWA Cable.
Function : Provide Mechanical Cable Retention Electrical Wire continuity via Armored Wire.
Standard : BS 6121
IP Rating : IP30
Application : Dry Indoor, for use with all types of SWA Cable.
Function : Provide Mechanical Cable Retention Electrical Wire continuity via Armored Wire.
Material :Brass BS 2874 CZ121 Pb3.
Optional Threads :METRIC,NPT,BSP & PG.
Finish : Natural Brass & Nickel Finish
Operating Temp. : 80° - C to + 600⁰ C.
Accessories : Matching Accessories available like PVC Shroud, Lock Nuts & Earth Tags
Optional Threads :METRIC,NPT,BSP & PG.
Finish : Natural Brass & Nickel Finish
Operating Temp. : 80° - C to + 600⁰ C.
Accessories : Matching Accessories available like PVC Shroud, Lock Nuts & Earth Tags
| CODE NO. | GLAND SIZE | THREAD SIZE 'C' | MINIMUM LENGTH OF THREAD 'D' |
CABLE RANGE | ||
| METRIC | NPT | MAX 'A' | MAX 'B' | |||
RP-B4-20 S |
BW 20 S |
M 20 | ½" | 10 | 11.50 | 15.50 |
RP- B4-20 L |
BW 20 L |
M 20 | ½" | 10 | 14.00 | 20.50 |
RP-B4-25 S |
BW 25 S |
M 25 | 3/4" | 10 | 18.00 | 24.00 |
RP-B4-25 L |
BW 25 L |
M 25 | 3/4" | 10 | 20.00 | 27.20 |
RP-B4-32 S |
BW 32 S |
M 32 | 1" | 10 | 26.30 | 33.50 |
RP-B4-32 L |
BW 32 L |
M 32 | 1" | 10 | 26.30 | 33.50 |
RP-B4-40 S |
BW 40 S |
M 40 | 1 1/4" | 13 | 31.50 | 39.50 |
RP-B4-40 L |
BW 40 L |
M 40 | 1 1/4" | 13 | 32.00 | 40.00 |
RP-B4-50 S |
BW 50 S |
M 50 | 1 1/2" | 13 | 38.20 | 46.30 |
RP-B4-50 L |
BW 50 L |
M 50 | 2" | 13 | 44.00 | 52.60 |
RP-B4-63 S |
BW 63 S |
M 63 | 2" | 14 | 50.10 | 59.00 |
RP-B4-63 L |
BW 63 L |
M 63 | 2½" | 14 | 56.00 | 65.30 |
| RP-B4-75 S | BW 75 S | M 75 | 2½" | 15 | 62.00 | 71.60 |
| RP-B4-75 L | BW 75 L | M 75 | 3" | 15 | 68.00 | 78.00 |
| RP-B4-90 S | BW 90 S | M 90 | 3" | 18 | 80.50 | 91.00 |
| RP-B4-90 L | BW 90 L | M 90 | 3" | 18 | 80.50 | 91.00 |
