Brass Neutral Links

Description

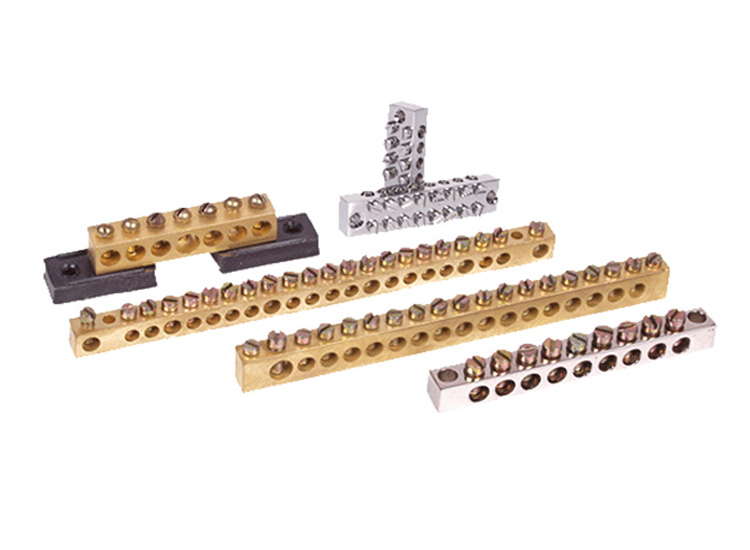

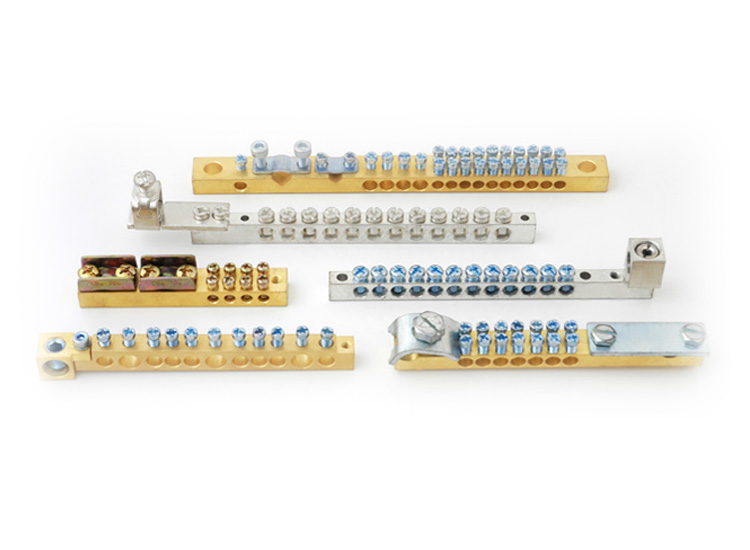

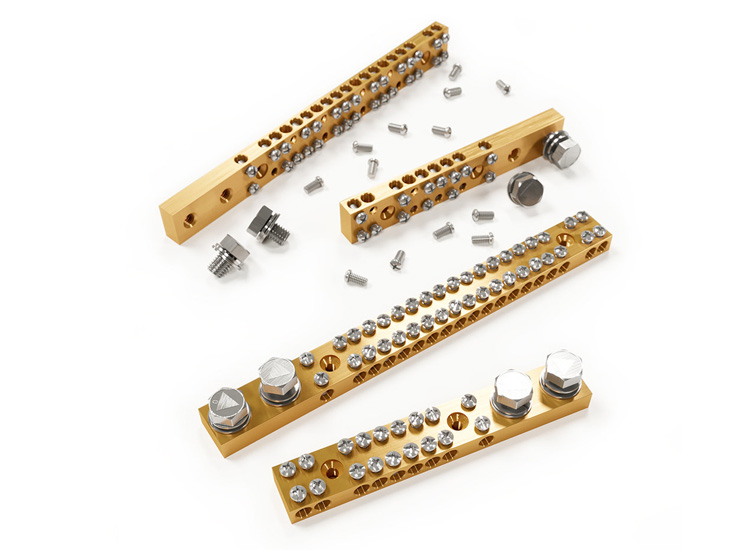

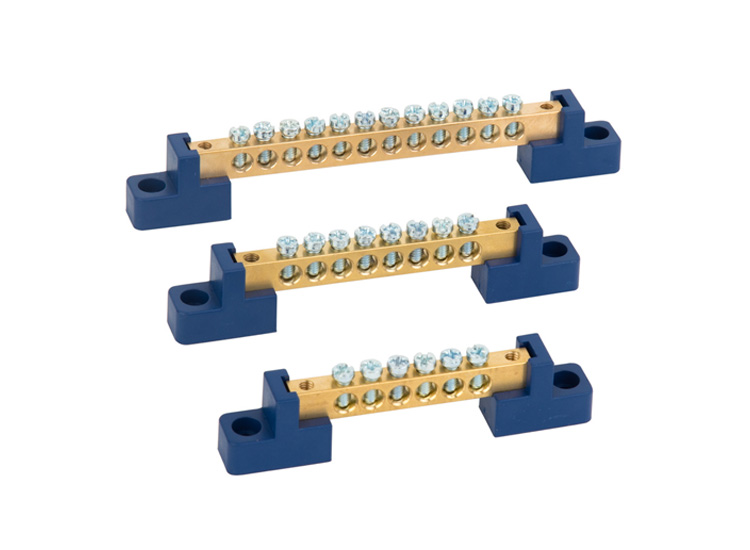

We offer a wide range of Brass Neutral Link Bars, Neutral Earth Bars and Brass Terminal Blocks in different sizes for electrical, electronics and telecommunication industrial requirements. You can get precision quality products with reasonable price and great service. We manufacture Neutral Link- Bar and Earthing Terminals as per international standards and tolerances. Brass Neutral Links, Earth Bar and Terminal Blocks are available in different types or size including 4 way, 8 way, 12 way, 26 way, 1 meter length and many more. Brass Neutral Links, Earth Bars and Terminal Blocks are available with tin plated or nickel-plated finish. We also manufacture earth neutral bars in different sizes as per customer specification. We provide Brass Neutral Link Bars for all types of panel boards, switch gears and electrical switch boards. Neutral Link Bars are generally used in main electrical panel, street drop or meter, and also at the final step-down transformer of the supply. Get a Quick Quote for any type of requirements related to Neutral Links..

Material : High Grade Free Cutting Brass
Brass Alloy: CuZn39Pb3 / CuZn39Pb2 / CuZn38Pb1.5 / CuZn37Pb2 / CuZn40Pb2 / MS 58 / BS2874 / IS 319 (Type I & II)
UNS (ASTM): C35300 / C35330 DZR / C36000 (CDA 360) / C36500 / C37000 / C37100 / C37700 / C37710 / C38500
BS: CZ121 / CZ122 / CZ124 / CZ128 / CZ 131 / CZ132
EN: CW602N / CW603N / CW606N / CW608N / CW612N / CW614N / CW617N
JIS: C3601 / C3602 / C3603 / C3604 / C3605 / C3712 / C3771
Any special brass material compositions as per customer’s requirement

Range : »2 Way to 108 Way, and Length up to 1.5 Meters
Sizes available from M2 to M30 and special up to M36, and 1/8’’, 5/32’’, 3/16’’, 1/4’’, 5/16’’, 3/8’’, 1/2’’, 3/4’’, 1’’, 1-1/2”, 2” or Custom Designs and requirements.

Threads : » ISO Metric (MM) / BA / BSW / BSP / BSPT / BSF / BSB / UNC / UNF / UNEF / NPT / NPS / Specified Threads Any threads as per client specification

Accessories : » Screws (Brass / Steel), Washers, Nuts, Connecting Plate with Complete assembly as well as Plastics and Rubber Parts as per Customers requirements.

Application : » Electronics Industry used as an accessory in panel boards & electrical board, electronics & telecommunications industry

Finish & Coating : »Natural Clean / Nickel Plated / Electro-Tin Plated / Silver Plated / Copper Plated / Zinc Plated / Chrome Plated / Specified Surface Finish.

Any Type of Brass Neutral Links & Neutral Bars can be developed and supplied exactly as per customer specifications.
