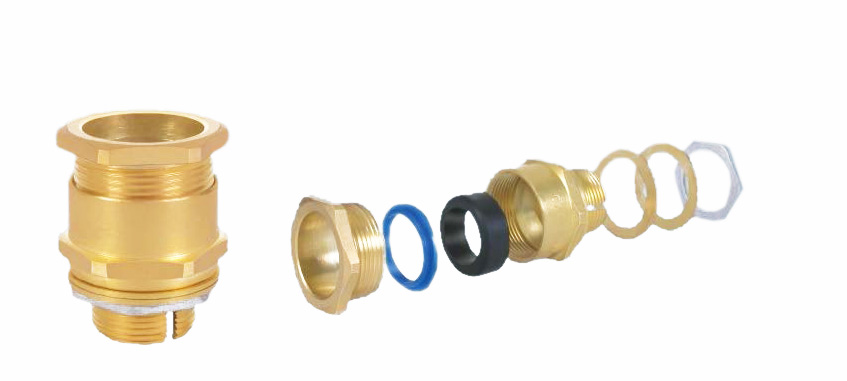

A2 CXT Type Cable Gland
A2 CXT Type Cable Gland
Technical Data
Size : 20 mm to 90 mm S & L
Standard : BS 6121
IP Rating : IP66 & 68
Application : Outdoor or Indoor for use with all types of Unarmoured Cable.
Function : A2 CXT type glands provide a single pull resistance seal on the outer sheath of unarmoured cable.
Standard : BS 6121
IP Rating : IP66 & 68
Application : Outdoor or Indoor for use with all types of Unarmoured Cable.
Function : A2 CXT type glands provide a single pull resistance seal on the outer sheath of unarmoured cable.
Material :Brass BS 2874 CZ121 Pb3.
Optional Threads :METRIC,NPT,BSP & PG.
Finish : Natural Brass & Nickel Finish
Operating Temp. : Standard seal 20° - C to + 80⁰ C.
Accessories : Matching Accessories available like PVC Shroud, Lock Nuts & Earth Tags
Optional Threads :METRIC,NPT,BSP & PG.
Finish : Natural Brass & Nickel Finish
Operating Temp. : Standard seal 20° - C to + 80⁰ C.
Accessories : Matching Accessories available like PVC Shroud, Lock Nuts & Earth Tags
| CODE NO. | GLAND SIZE | THREAD SIZE 'C' | MINIMUM LENGTH OF THREAD 'D' |
CABLE RANGE 'A' | ||
| METRIC | NPT | MIN. | MAX. | |||
| RP-CXT-20S | A2 CXT 20S | M20 | ½" | 10 | 11.50 | 8.00 |
| RP-CXT-20L | A2 CXT 20L | M20 | ½" | 10 | 13.50 | 11.00 |
| RP-CXT-25S | A2 CXT 25S | M25 | 3/4" | 10 | 16.50 | 13.00 |
| RP-CXT-25L | A2 CXT 25L | M25 | 3/4" | 10 | 19.50 | 16.00 |
| RP-CXT-32L | A2 CXT 32L | M32 | 1" | 10 | 25.50 | 19.00 |
| RP-CXT-40S | A2 CXT 40S | M40 | 1¼" | 15 | 29.00 | 23.00 |
| RP-CXT-40L | A2 CXT 40L | M40 | 1¼" | 15 | 32.00 | 25.00 |
| RP-CXT-50S | A2 CXT 50S | M50 | 1½" | 15 | 37.00 | 31.50 |
| RP-CXT-50L | A2 CXT 50L | M50 | 2" | 15 | 43.00 | 36.50 |
| RP-CXT-63S | A2 CXT 63S | M63 | 2" | 15 | 50.00 | 42.50 |
| RP-CXT-63L | A2 CXT 63L | M63 | 2½" | 15 | 55.00 | 49.50 |
| RP-CXT-75S | A2 CXT 75S | M75 | 2½" | 15 | 61.00 | 54.50 |
| RP-CXT-75L | A2 CXT 75L | M75 | 3" | 15 | 67.00 | 60.50 |
| RP-CXT-90 | A2 CXT 90 | M90 | 3" | 20 | 78.00 | 65.00 |
