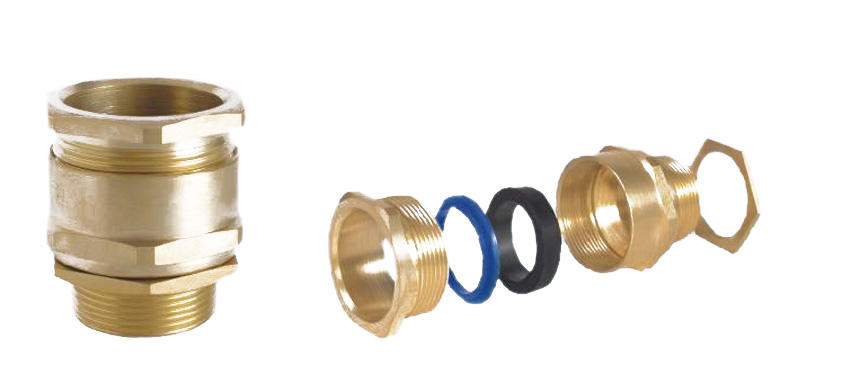

A1/A2 Type Cable Gland
A1/A2 Type Cable Gland
Technical Data
Size : 20 mm to 90 mm S & L
Standard : BS 6121
IP Rating : IP66 & 68
Application : Outdoor or Indoor for use with all types of Unarmoured Cable.
Function : A2 type glands provide a single pull resistance seal on the outer sheath of unarmoured cable.
Standard : BS 6121
IP Rating : IP66 & 68
Application : Outdoor or Indoor for use with all types of Unarmoured Cable.
Function : A2 type glands provide a single pull resistance seal on the outer sheath of unarmoured cable.
Material :Brass BS 2874 CZ121 Pb3.
Optional Threads :METRIC, NPT, BSP & PG.
Finish : Natural Brass & Nickel Finish
Operating Temp. : Standard seal 20° - C to + 80° C.
Accessories : Matching Accessories available like PVC Shroud, Lock Nuts & Earth Tags.
Optional Threads :METRIC, NPT, BSP & PG.
Finish : Natural Brass & Nickel Finish
Operating Temp. : Standard seal 20° - C to + 80° C.
Accessories : Matching Accessories available like PVC Shroud, Lock Nuts & Earth Tags.
| CODE NO. | GLAND SIZE | THREAD SIZE 'B' | MINIMUM LENGTH OF THREAD 'C' |
CABLE RANGE 'A' | ||
| METRIC | NPT | MAX | MIN | |||
RP-A1-20S |
A1/A2 20S |
M20 |
1/2" |
10 |
11.50 |
8.00 |
RP-A1-20L |
A1/A2 20L |
M20 |
1/2" |
10 |
13.50 |
11.00 |
RP-A1-25S |
A1/A2 25S |
M25 |
3/4" |
10 |
16.50 |
13.00 |
RP-A1-25L |
A1/A2 25L |
M25 |
3/4" |
10 |
19.50 |
16.00 |
RP-A1-32L |
A1/A2 32L |
M32 |
1" |
10 |
25.50 |
19.00 |
RP-A1-40S |
A1/A2 40S |
M40 |
1 1/4" |
15 |
29.00 |
23.00 |
RP-A1-40L |
A1/A2 40L |
M40 |
1 1/4" |
15 |
32.00 |
25.00 |
RP-A1-50S |
A1/A2 50S |
M50 |
1 1/2" |
15 |
37.00 |
31.50 |
RP-A1-50L |
A1/A2 50L |
M50 |
2" |
15 |
43.00 |
36.50 |
RP-A1-63S |
A1/A2 63S |
M63 |
2" |
15 |
50.00 |
42.50 |
RP-A1-63L |
A1/A2 63L |
M63 |
2 1/2" |
15 |
55.00 |
49.50 |
RP-A1-75S |
A1/A2 75S |
M75 |
2 1/2" |
15 |
61.00 |
54.50 |
RP-A1-75L |
A1/A2 75L |
M75 |
3" |
15 |
67.00 |
60.50 |
RP-A1-90 |
A1/A2 90 |
M90 |
3" |
20 |
78.00 |
65.00 |

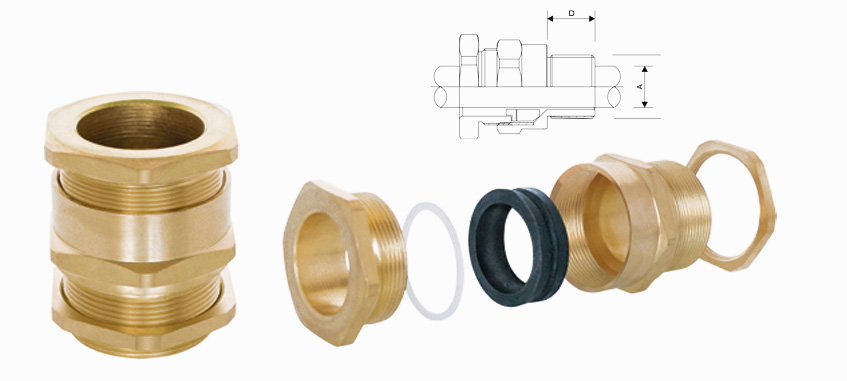

A2 Type Cable Gland
Technical Data
Size : 20 mm to 100 mm S & L
Standard : BS 6121
IP Rating : IP66 & 68
Application : Outdoor or Indoor for use with all types of Unarmoured Cable.
Function : A2 type glands provide a single pull resistance seal on the outer sheath of unarmoured cable.
Standard : BS 6121
IP Rating : IP66 & 68
Application : Outdoor or Indoor for use with all types of Unarmoured Cable.
Function : A2 type glands provide a single pull resistance seal on the outer sheath of unarmoured cable.
Material :Brass BS 2874 CZ121 Pb3.
Optional Threads :METRIC,NPT,BSP & PG.
Finish : Natural Brass & Nickel Finish
Operating Temp. : Standard seal 20° - C to + 80° C.
Accessories : Matching Accessories available like PVC Shroud, Lock Nuts & Earth Tags.
Optional Threads :METRIC,NPT,BSP & PG.
Finish : Natural Brass & Nickel Finish
Operating Temp. : Standard seal 20° - C to + 80° C.
Accessories : Matching Accessories available like PVC Shroud, Lock Nuts & Earth Tags.
| CODE NO. | GLAND SIZE | THREAD SIZE 'B' | MINIMUM LENGTH OF THREAD 'C' |
CABLE RANGE 'A' | ||
| METRIC | NPT | MAX | MIN | |||
RP-A2-20S |
A2 20S |
M20 |
1/2" |
15 |
11.50 |
8.80 |
RP- A2-20L |
A2 20L |
M20 |
1/2" |
15 |
14.50 |
11.40 |
RP-A2-25S |
A2 25S |
M25 |
3/4" |
15 |
16.00 |
13.00 |
RP-A2-25L |
A2 25L |
M25 |
3/4" |
15 |
20.30 |
17.30 |
RP-A2-32S |
A2 32S |
M32 |
1" |
15 |
23.00 |
20.00 |
RP-A2-32L |
A2 32L |
M32 |
1" |
15 |
26.20 |
24.20 |
RP-A2-40S |
A2 40S |
M40 |
1 1/4" |
20 |
29.00 |
26.00 |
RP-A2-40L |
A2 40L |
M40 |
1 1/4" |
20 |
34.00 |
29.50 |
RP-A2-50S |
A2 50S |
M50 |
1 1/2" |
20 |
41.00 |
33.00 |
RP-A2-50L |
A2 50L |
M50 |
2" |
20 |
44.00 |
38.00 |
RP-A2-63S |
A2 63S |
M63 |
2" |
20 |
51.50 |
44.00 |
RP-A2-63L |
A2 63L |
M63 |
2 1/2" |
20 |
56.50 |
50.00 |
RP-A2-75S |
A2 75S |
M75 |
2 1/2" |
20 |
63.20 |
56.00 |
RP-A2-75L |
A2 75L |
M75 |
3" |
20 |
68.50 |
62.00 |
RP-A2-90S |
A2 90S |
M90 |
3" |
20 |
80.00 |
65.00 |
RP-A2-100 |
A2 100 |
M100 |
3 1/2" |
25 |
90.00 |
82.00 |
