Brass Hex Bolts
Brass Hex Bolts
Technical Data
Material : Brass IS318- 319-320, CuZn40Pb2, CuZn39Pb3 as per customer’s Specifications.
Finish : Brass Natural, Nickel, Crome, Silver, Gold, Electro-Tinned as per customer’s requirements
Size : All dimensions are in MM. Any kind of Parts can be developed and supplied exactly as per customer specifications, design and requirements.
Finish : Brass Natural, Nickel, Crome, Silver, Gold, Electro-Tinned as per customer’s requirements
Size : All dimensions are in MM. Any kind of Parts can be developed and supplied exactly as per customer specifications, design and requirements.

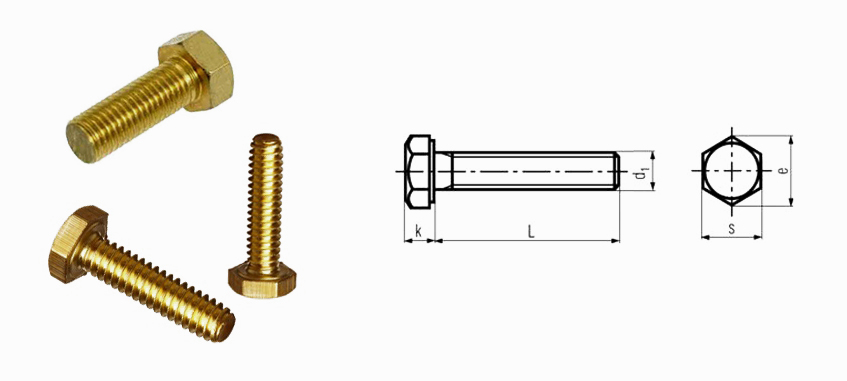

DIN 933 ISO-2009
D |
K |
E |
S |
M3 |
2.00 |
6.01 |
5.50 |
M4 |
2.80 |
7.66 |
7.00 |
M5 |
3.50 |
8.79 |
8.00 |
M6 |
4.00 |
11.05 |
10.00 |
M8 |
5.30 |
14.38 |
13.00 |
M10 |
6.40 |
18.90 |
17.00 |
M12 |
7.50 |
21.10 |
19.00 |
M14 |
8.80 |
24.49 |
22.00 |
M16 |
10.00 |
26.75 |
24.00 |
M18 |
11.50 |
30.14 |
27.00 |
M20 |
12.50 |
33.53 |
30.00 |
M22 |
14.00 |
35.72 |
32.00 |
M24 |
15.00 |
39.98 |
36.00 |
M27 |
17.00 |
45.20 |
41.00 |
M30 |
18.70 |
50.85 |
46.00 |
M33 |
21.00 |
55.37 |
50.00 |
M36 |
22.50 |
60.79 |
55.00 |
M42 |
26.00 |
71.30 |
65.00 |
M48 |
30.00 |
82.60 |
75.00 |
