Brass Machine Screws

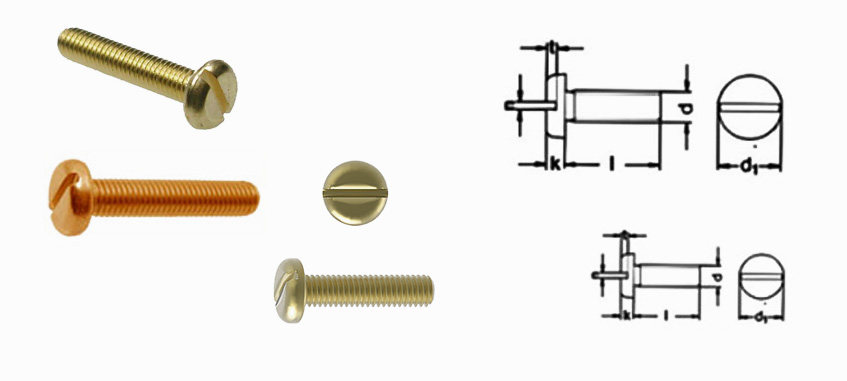

Pan Head Machine Screws Din 85

Technical Data

Material : Brass IS318- 319-320, CuZn40Pb2, CuZn39Pb3 as per customer’s Specifications.
Finish : Brass Natural, Nickel, Crome, Silver, Gold, Electro-Tinned as per customer’s requirements
Size : All dimensions are in MM. Any kind of Parts can be developed and supplied exactly as per customer specifications, design and requirements.
DIAMETER M2 M2.5 M3 M4 M5 M6 M8
T
0.5
0.6
0.7
1
1.2
1.50
1.90
N
0.6
0.6
0.8
1
1.2
1.60
2.00
K
1.2
1.5
1.8
2.4
3
3.60
4.80
D1
4
5
6
8
10
12.00
16.00

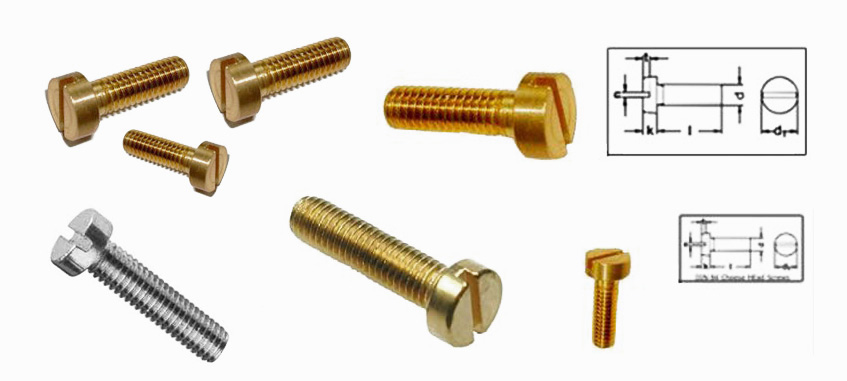

Cheese Head Screws Din 84

Technical Data

Material : Brass IS318- 319-320, CuZn40Pb2, CuZn39Pb3 as per customer’s Specifications.
Finish : Brass Natural, Nickel, Crome, Silver, Gold, Electro-Tinned as per customer’s requirements.
Size : All dimensions are in MM. Any kind of Parts can be developed and supplied exactly as per customer specifications, design and requirements.
DIAMETER M2 M2.5 M3 M4 M5 M6 M8 M10
T
0.6
0.7
0.9
1.2
1.5
1.80
2.10
2.4
N
0.5
0.6
0.8
1
1.2
1.60
2.00
2.5
K
1.3
1.6
2
2.6
3.3
3.90
5.00
6
D1
3.8
4.5
5.5
7
8.5
10.00
13.00
16.00

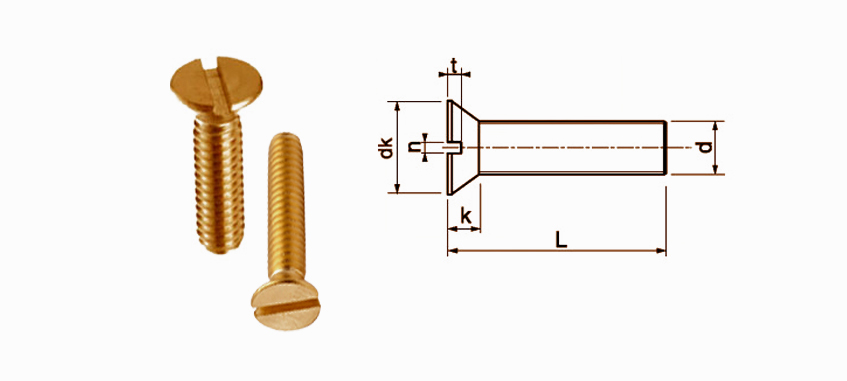

CSK Slotted Machine Screws Din 963

Technical Data

Material : Brass IS318- 319-320, CuZn40Pb2, CuZn39Pb3 as per customer’s Specifications.
Finish : Brass Natural, Nickel, Crome, Silver, Gold, Electro-Tinned as per customer’s requirements
Size : All dimensions are in MM. Any kind of Parts can be developed and supplied exactly as per customer specifications, design and requirements.
DIAMETER M2 M2.5 M3 M4 M5 M6 M8 M10 M12
K
1.20
1.50
1.65
2.20
2.50
3.00
4.00
5.00
6
T
0.60
0.70
0.85
1.10
1.30
1.60
2.10
2.60
3
N
0.50
0.60
0.80
1.00
1.20
1.60
2.00
2.50
3
DK
3.80
4.70
5.60
7.50
9.20
11.00
14.50
18.00
22
