CW Type Cable Gland

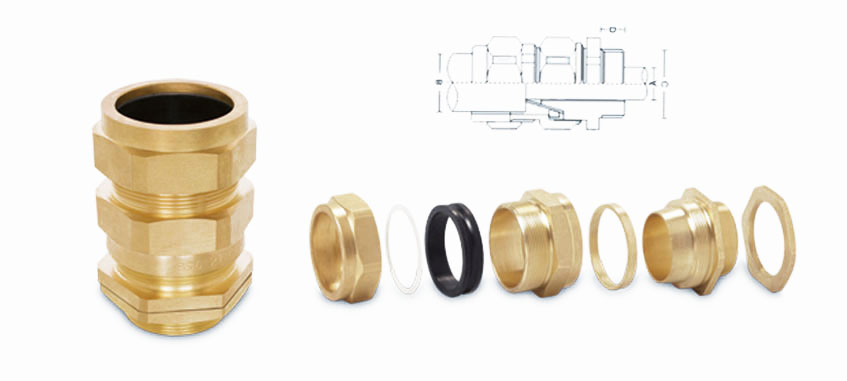

CW 4 Part Type Cable Gland
Technical Data
Size : 20 mm to 90 mm S & L
Standard : BS 6121
IP Rating : IP66
Application : For Indoor or outdoor use with all types of SWA Cables.
Function : CW type gland provide a seal on the outer sheath and an armour specific armour clamp for armoured cable. The armour clamp provides an electrical bond armour cable and the gland.
Standard : BS 6121
IP Rating : IP66
Application : For Indoor or outdoor use with all types of SWA Cables.
Function : CW type gland provide a seal on the outer sheath and an armour specific armour clamp for armoured cable. The armour clamp provides an electrical bond armour cable and the gland.
Material :Brass BS 2874 CZ121 Pb3.
Optional Threads :METRIC,NPT,BSP & PG.
Finish : Natural Brass & Nickel Finish
Operating Temp. : Standard seal 20° - C to + 80⁰ C.
Accessories : Matching Accessories available like PVC Shroud, Lock Nuts & Earth Tags
Optional Threads :METRIC,NPT,BSP & PG.
Finish : Natural Brass & Nickel Finish
Operating Temp. : Standard seal 20° - C to + 80⁰ C.
Accessories : Matching Accessories available like PVC Shroud, Lock Nuts & Earth Tags
| CODE NO. | GLAND SIZE | THREAD SIZE 'C' | MINIMUM LENGTH OF THREAD 'D' |
CABLE RANGE | ||
| METRIC | NPT | MAX 'A' | MAX 'B' | |||
RP-C4-20S |
CW 20S |
M20 | ½" | 10 | 11.50 | 15.50 |
RP-C4-20L |
CW 20L |
M20 | ½" | 10 | 14.00 | 20.50 |
RP-C4-25S |
CW 25S |
M25 | 3/4" | 10 | 18.00 | 24.00 |
RP-C4-25L |
CW 25L |
M25 | 3/4" | 10 | 20.00 | 27.20 |
RP-C4-32S |
CW 32S |
M32 | 1" | 10 | 26.30 | 33.50 |
RP-C4-32L |
CW 32L |
M32 | 1" | 10 | 26.30 | 33.50 |
RP-C4-40S |
CW 40S |
M40 | 1¼" | 13 | 31.50 | 39.50 |
RP-C4-40L |
CW 40L |
M40 | 1¼" | 13 | 32.00 | 40.00 |
RP-C4-50S |
CW 50S |
M50 | 1½" | 13 | 38.20 | 46.30 |
RP-C4-50L |
CW 50L |
M50 | 2" | 13 | 44.00 | 52.60 |
RP-C4-63S |
CW 63S |
M63 | 2" | 14 | 50.10 | 59.00 |
| RP-C4-63L | CW 63L | M63 | 2½" | 14 | 56.00 | 65.30 |
| RP-C4-75S | CW 75S | M75 | 2½" | 15 | 62.00 | 71.60 |
| RP-C4-75L | CW 75L | M75 | 3" | 15 | 68.00 | 78.00 |
| RP-C4-90S | CW 90S | M90 | 3" | 18 | 80.50 | 91.00 |
| RP-C4-90L | CW 90L | M90 | 3" | 18 | 80.50 | 91.00 |

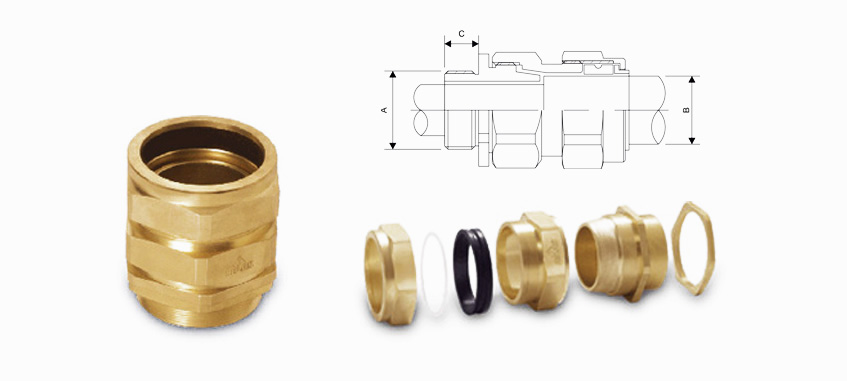

CW 3 PT Type Cable Glands
Technical Data
Size : 20 mm to 90 mm S & L
Standard : BS 6121
IP Rating : IP66
Application : For Indoor or outdoor use with all types of SWA Cables.
Function : CW type gland provide a seal on the outer sheath and an armour specific armour clamp for armoured cable. The armour clamp provides an electrical bond armour cable and the gland.
Standard : BS 6121
IP Rating : IP66
Application : For Indoor or outdoor use with all types of SWA Cables.
Function : CW type gland provide a seal on the outer sheath and an armour specific armour clamp for armoured cable. The armour clamp provides an electrical bond armour cable and the gland.
Material :Brass BS 2874 CZ121 Pb3.
Optional Threads :METRIC,NPT,BSP & PG.
Finish : Natural Brass & Nickel Finish
Operating Temp. : Standard seal 20° - C to + 80⁰ C.
Accessories : Matching Accessories available like PVC Shroud, Lock Nuts & Earth Tags
Optional Threads :METRIC,NPT,BSP & PG.
Finish : Natural Brass & Nickel Finish
Operating Temp. : Standard seal 20° - C to + 80⁰ C.
Accessories : Matching Accessories available like PVC Shroud, Lock Nuts & Earth Tags
| CODE NO. | GLAND SIZE | THREAD SIZE 'C' | MINIMUM LENGTH OF THREAD 'D' |
CABLE RANGE 'A' | ||
| METRIC | NPT | MIN. | MAX. | |||
| RP-C3-20S | CW 20S | M20 | ½" | 10 | 11.50 | 15.50 |
| RP-C3-20L | CW 20L | M20 | ½" | 10 | 14.00 | 20.50 |
| RP-C3-25S | CW 25S | M25 | 3/4" | 10 | 18.00 | 24.00 |
| RP-C3-25L | CW 25L | M25 | 3/4" | 10 | 20.00 | 27.20 |
| RP-C3-32S | CW 32S | M32 | 1" | 10 | 26.30 | 33.50 |
| RP-C3-32L | CW 32L | M32 | 1" | 15 | 26.30 | 33.50 |
| RP-C3-40S | CW 40S | M40 | 1¼" | 15 | 31.50 | 39.50 |
| RP-C3-40L | CW 40L | M40 | 1¼" | 20 | 32.00 | 40.00 |
| RP-C3-50S | CW 50S | M50 | 1½" | 20 | 38.20 | 46.30 |
| RP-C3-50L | CW 50L | M50 | 2" | 20 | 44.00 | 52.60 |
| RP-C3-63S | CW 63S | M63 | 2" | 20 | 50.10 | 59.00 |
| RP-C3-63L | CW 63L | M63 | 2½" | 20 | 56.00 | 65.30 |
| RP-C3-75S | CW 75S | M75 | 2½" | 20 | 62.00 | 71.60 |
| RP-C3-75L | CW 75L | M75 | 3" | 20 | 68.00 | 78.00 |
| RP-C3-90S | CW 90S | M90 | 3" | 20 | 80.50 | 91.00 |
| RP-C3-90L | CW 90L | M90 | 3" | 20 | 80.50 | 91.00 |

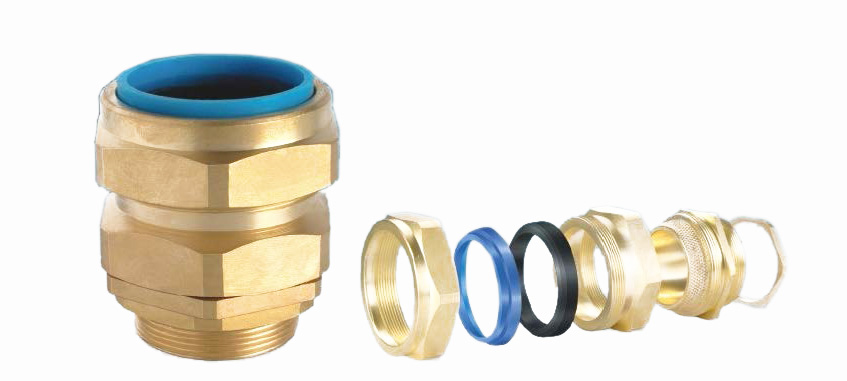

CW 3 PT Type 2 Cable Glands
Technical Data
Size : 20 mm to 90 mm S & L
Standard : BS 6121
IP Rating : IP66
Application : For Indoor or outdoor use with all types of SWA Cables.
Function : CW type gland provide a seal on the outer sheath and an armour specific armour clamp for armoured cable. The armour clamp provides an electrical bond armour cable and the gland.
Standard : BS 6121
IP Rating : IP66
Application : For Indoor or outdoor use with all types of SWA Cables.
Function : CW type gland provide a seal on the outer sheath and an armour specific armour clamp for armoured cable. The armour clamp provides an electrical bond armour cable and the gland.
Material :Brass BS 2874 CZ121 Pb3.
Optional Threads :METRIC,NPT,BSP & PG.
Finish : Natural Brass & Nickel Finish
Operating Temp. : Standard seal 20° - C to + 80⁰ C.
Accessories : Matching Accessories available like PVC Shroud, Lock Nuts & Earth Tags
Optional Threads :METRIC,NPT,BSP & PG.
Finish : Natural Brass & Nickel Finish
Operating Temp. : Standard seal 20° - C to + 80⁰ C.
Accessories : Matching Accessories available like PVC Shroud, Lock Nuts & Earth Tags
| CODE NO. | GLAND SIZE | THREAD SIZE 'C' | MINIMUM LENGTH OF THREAD 'D' |
CABLE RANGE 'A' | ||
| METRIC | NPT | MIN. | MAX. | |||
| RP-CN-20S | CW 20S | M20 | ½" | 10 | 11.80 | 15.80 |
| RP-CN-20L | CW 20L | M20 | ½" | 10 | 14.00 | 20.80 |
| RP-CN-25S | CW 25S | M25 | 3/4" | 10 | 18.00 | 24.00 |
| RP-CN-25L | CW 25L | M25 | 3/4" | 10 | 20.00 | 27.20 |
| RP-CN-32S | CW 32S | M32 | 1" | 10 | 24.50 | 31.00 |
| RP-CN-32L | CW 32L | M32 | 1" | 10 | 26.30 | 33.50 |
| RP-CN-40S | CW 40S | M40 | 1¼" | 15 | 30.40 | 38.50 |
| RP-CN-40L | CW 40L | M40 | 1¼" | 15 | 32.20 | 40.00 |
| RP-CN-50S | CW 50S | M50 | 1½" | 15 | 38.20 | 46.30 |
| RP-CN-50L | CW 50L | M50 | 2" | 15 | 44.00 | 52.60 |
| RP-CN-63S | CW 63S | M63 | 2" | 15 | 50.00 | 59.00 |
| RP-CN-63L | CW 63L | M63 | 2½" | 15 | 56.00 | 65.30 |
| RP-CN-75S | CW 75S | M75 | 2½" | 15 | 62.00 | 71.60 |
| RP-CN-75L | CW 75L | M75 | 3" | 15 | 68.00 | 78.00 |
| RP-CN-90S | CW 90S | M90 | 3" | 20 | 84.00 | 96.00 |
| RP-CN-90L | CW 90L | M90 | 3" | 20 | 84.00 | 102.00 |
